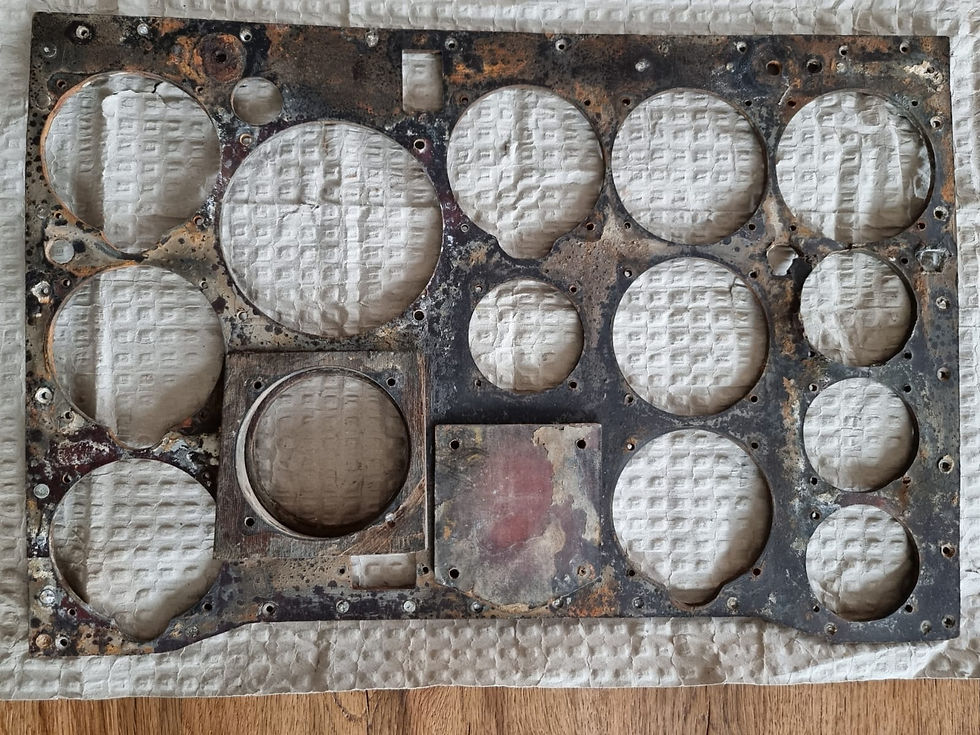

Heinkel He 219 "UHU" /night fighter panel / 1944 german Luftwaffe

MUSEUM GRADE ! 100 % originality guarantee !

Dimensions in cm : Length 45, Width 20, Height 31

The cockpit of the Heinkel He 219 "Uhu"

.........was considered one of the most advanced of World War II, specifically designed for the complex requirements of night fighting. It was a spacious, two-seat workstation (pilot in the front, radar operator in the back) that offered good all-around visibility through a large bubble canopy. Cockpit and Instrument Panel Layout The main instrument panel was, as was standard for German aircraft, modular in design and integrated into the pilot's field of vision. It was divided into the following primary areas: Flight Instruments (Center): The most important instruments for flight control were located directly in the pilot's central view.

Engine Instruments:

These were typically arranged on the right or in separate panels. Radio and Radar Displays (for the Operator): These were located in the rear section of the cockpit where the radar operator (radio operator) sat. Important Instruments and Their Functions The instrumentation included a combination of standard Luftwaffe flight instruments and specialized night-fighting equipment: Flight Instruments Airspeed Indicator (Fahrtmesser): Showed the current flight speed. Markings on the scale (green for normal operation, yellow for use only in calm air, red line for maximum speed) indicated important operating limits to the pilot. Altimeter (Höhenmesser): A barometric instrument that displayed the altitude above sea level. Turn Coordinator (Wendezeiger) and Attitude Indicator (Horizontkreisel): Gyroscopic instruments that helped the pilot maintain the aircraft's attitude (bank and yaw) in poor visibility or darkness by simulating an artificial horizon.

Vertical Speed Indicator (Variometer): Showed the rate of climb or descent of the aircraft, usually in meters per second or feet per minute. Heading Indicator (Kurskreisel): The main directional instrument that displayed the current flight direction and had to be periodically synchronized with the magnetic compass. Engine and System Instruments Fuel Gauges (Kraftstoffanzeigen): Showed the level of the three fuselage tanks. Fuel selectors were located near the throttle. Boost Pressure and RPM Indicators: Important for monitoring engine performance.

Temperature and Pressure Gauges: Monitored critical engine parameters such as oil and coolant temperature as well as oil pressure. Trim Indicators: Showed the settings for pitch, roll, and yaw trim. Landing Gear and Flap Indicators/Switches: Indicators and switches for the innovative tricycle landing gear and the landing flaps. Specialized Night-Fighting Equipment Radar Display (FuG 202 "Lichtenstein BC" or later FuG 220 "Lichtenstein SN-2"): The screens (cathode ray tubes) and controls for the intercept radar were located in the rear of the cockpit.

The radar operator used these to locate enemy bombers and guide the pilot to the target. The SN-2 version operated on a different frequency band to counter British "Window" (chaff) jamming. "Schräge Musik" Controls: Controls for the upward-firing cannons located behind the cockpit. In summary, the He 219's instrument panel featured a logical arrangement of the instruments available at the time, supplemented by highly specialized technology for its role as an effective night fighter.

The Heinkel He 219 "Uhu" (German: Owl)

......was a highly advanced twin-engine night fighter aircraft of the German Luftwaffe in World War II, specifically developed for defense against British bomber attacks. Features and Innovations The He 219 was ahead of its time in many respects:

Ejection Seats:

It was the world's first operational military aircraft equipped with ejection seats for its two-man crew. Tricycle Landing Gear: It was the first operational German aircraft of World War II with a tricycle landing gear, which made ground maneuvering much easier. Radar: Equipped with "Lichtenstein" VHF intercept radar, which helped pilots track down enemy bombers at night. "Schräge Musik": Later versions featured upward-firing 30mm cannons ("Schräge Musik" - literally "slanted music"), allowing the fighter to sneak up on bombers from below undetected and destroy them outside the tail gunners' field of vision. Operational Use and History The prototype first flew in November 1942, and the aircraft entered service in 1943.

On its operational debut in June 1943, a single He 219 shot down five British bombers in one mission, demonstrating its effectiveness. Despite its impressive performance and popularity among pilots, the He 219 was only produced in limited numbers (fewer than 300 examples) due to bureaucratic squabbles and rivalries within the Reich Aviation Ministry (RLM), particularly between Ernst Heinkel and Erhard Milch. These delays and the low production numbers prevented the He 219 from having a significant impact on the outcome of the air war.

Today, a restored example of the He 219 is on display at the Udvar-Hazy Center of the National Air and Space Museum in the USA.
